Endlessh (SSH Tarpit): Trapping Hacker Bots for Weeks on Your VPS

🇺🇦 Читати цю статтю в оригіналі українською

---

Anyone who has deployed a public VPS server knows the sobering reality: within 15 minutes of provisioning an IP address, your system log (/var/log/auth.log) starts bursting at the seams.

Hundreds of automated botnets and script-kiddies scan port 22 relentlessly around the clock, brute-forcing pedestrian credentials: admin, root, test, qwerty.

Traditionally, system administrators respond with standard defensive measures:

1. Moving OpenSSH to a non-standard port.
2. Installing fail2ban to drop IP addresses after consecutive failed authentication attempts.

However, consider this: when fail2ban severs an attacker’s TCP connection, the bot instantly reclaims its network socket and immediately targets its next victim. What if, instead of kicking the bot out… you forced it to wait for eternity?

This is the principle behind an SSH Tarpit, and the gold standard implementation is a tiny utility called Endlessh.

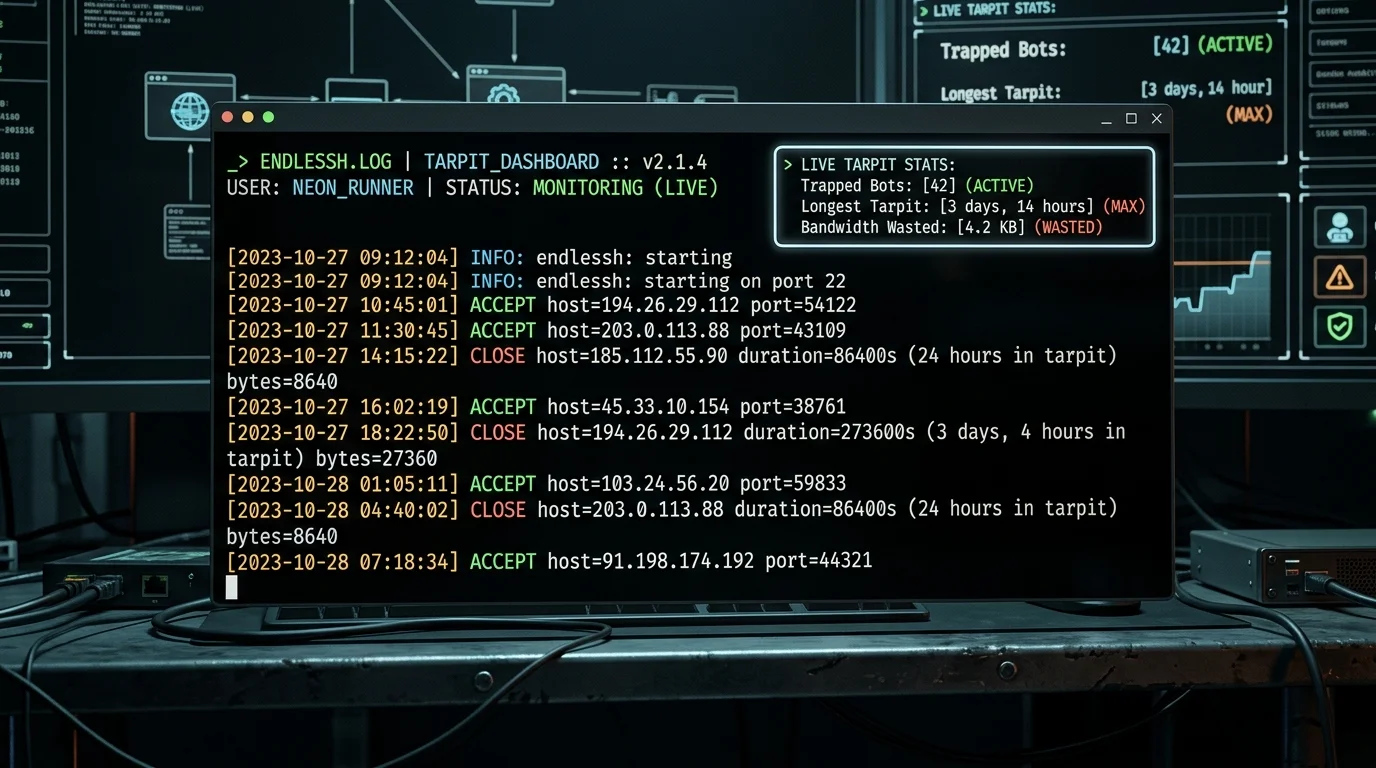

Fig. 1. Endlessh terminal logs: automated bots stuck in the tarpit for 24 hours and over 3 days

---

What is Endlessh and How Does a Tarpit Work?

According to the official SSH protocol specification (RFC 4253, Section 4.2), before the client and server exchange their protocol version strings, the server is permitted to transmit arbitrary textual header banners. The client is obligated to wait for and parse this input.

Endlessh exploits this standard with mischievous elegance:

1. An automated bot hits port 22 expecting an OpenSSH prompt.
2. Endlessh accepts the connection immediately, but never prompts for credentials.
3. Instead, it transmits random lines of banner text at a glacial crawl: one line every 10 seconds.
4. Standard automated brute-forcing scripts rarely enforce aggressive timeouts during the pre-auth banner phase. Consequently, they get hooked and hang open for hours, days, or even weeks.

[ Malicious Bot ]
        │
        ▼ (Connection attempt on port 22)
[ Endlessh Tarpit ]
        │ ── (Line 1) ──> [Waits 10 seconds...]
        │ ── (Line 2) ──> [Waits 10 seconds...]
        │ ── (Line 3) ──> [Waits 10 seconds...]
        ▼
   Bot socket locked up for weeks! Attacker resources depleted.

Written in C (or Go), Endlessh relies on asynchronous non-blocking poll() routines, consuming under 2–3 MB of RAM while easily maintaining thousands of simultaneous attacker sockets!

---

Step 1. Relocating Real OpenSSH to a Protected Port

Before opening the trap on port 22, move your genuine administrative SSH listener to a non-standard port (such as 1234 or any alternative high port).

⚠️ Warning: Keep your existing terminal session alive until you confirm successful login via a secondary window, ensuring you do not lock yourself out!

1. Edit the SSH daemon configuration:

   sudo nano /etc/ssh/sshd_config


2. Locate #Port 22 or Port 22, uncomment it, and specify your new port:

   Port 1234


3. Allow the new port through your system firewall:
   • If using UFW (Ubuntu/Debian):

     sudo ufw allow 1234/tcp
     sudo ufw reload


   • If using Firewalld (CentOS/AlmaLinux/RHEL):

     sudo firewall-cmd --permanent --add-port=1234/tcp
     sudo firewall-cmd --reload


4. If you run Fail2ban, ensure you update the monitored port in /etc/fail2ban/jail.local (port = 1234 under the [sshd] jail section) and restart the service:

   sudo systemctl restart fail2ban


5. Restart the OpenSSH service:

   sudo systemctl restart sshd   # or 'sudo systemctl restart ssh' on Debian/Ubuntu


6. Mandatory Verification: Open a new terminal on your local machine and verify connectivity:

   ssh -p 1234 user@your-server-ip


   Once logged in, standard port 22 is officially liberated for our trap!

---

Step 2. Deploying Endlessh via Docker

The cleanest and most robust deployment method is running the shizunge/endlessh-go image from Docker Hub. Unlike older builds, this version is written in Go, provides native Prometheus metrics export, and includes automated GeoIP resolution for incoming attackers.

💡 Important: The endlessh-go image is configured via CLI flags, not environment variables (ENV).

Option A: Via docker-compose.yml

1. Create a service directory:

   sudo mkdir -p /opt/endlessh && cd /opt/endlessh


2. Write docker-compose.yml:

   version: '3.8'

   services:
     endlessh:
       image: shizunge/endlessh-go:latest
       container_name: endlessh
       restart: unless-stopped
       ports:
         - "22:2222"   # Map external port 22 to internal tarpit port 2222
         - "2112:2112" # Prometheus metrics endpoint
       command:
         - -prometheus_enabled       # Enable Prometheus metrics exporter (disabled by default!)
         - -geoip_supplier=ip-api    # Automatically query country & Geohash via ip-api.com
         - -interval_ms=5000         # Delay between banner lines (5s = 5000ms)
         - -logtostderr
         - -v=1


3. Launch the container:

   docker compose up -d


Option B: Direct docker run Command

If you prefer launching it via a single standalone command:

docker run -d \
  --name endlessh \
  --restart unless-stopped \
  -p 22:2222 \
  -p 2112:2112 \
  shizunge/endlessh-go:latest \
  -prometheus_enabled \
  -geoip_supplier=ip-api \
  -interval_ms=5000 \
  -logtostderr \
  -v=1

Why these specific flags?

• -interval_ms=5000 (5 seconds): Many scanning scripts enforce a short idle/read timeout (aborting after 5–10 seconds of socket silence). Sending banner lines every 5 seconds keeps them engaged without triggering inactivity disconnects.
• -geoip_supplier=ip-api: Automatically queries the free ip-api.com service for geographic coordinates and country names without requiring manual downloads of offline MaxMind GeoLite2 databases.
• Verify port 22 is permitted in your firewall (sudo ufw allow 22/tcp or sudo firewall-cmd --permanent --add-port=22/tcp).

---

Step 3. Observing the Trapped Bots (Live Logs)

Within minutes of opening port 22, the first automated probes will stumble into your tarpit. Inspect the live container output:

docker logs -f endlessh

Fig. 1. Live Endlessh logs on our VPS: bots trapped in the tarpit

The log details the lifecycle of every trapped connection:

• ACCEPT host=... — An attacker connects to port 22 and begins reading the endless banner.
• CLOSE host=... time=... bytes=... — The connection terminates, showing exact duration and bytes transferred.

Why do some bots disconnect after 10–20 seconds?

You will notice several bots disconnecting with time=10.00... or time=20.00.... This occurs because many automated mass-scanning frameworks (built on Paramiko, Go, or Masscan) enforce a hardcoded client-side timeout of 10 to 20 seconds for the entire SSH handshake. If authentication is not presented within that window, the client initiates a FIN/RST disconnect.

Even so, a 20-second stall is a massive win: it ties up attacker socket worker threads and throttles rapid subnet sweeps. Meanwhile, persistent brute-force engines and less aggressive bots hang open for tens of minutes, hours, or even days!

---

Bonus: Monitoring with Prometheus & Grafana

With -prometheus_enabled active, endlessh-go exports detailed telemetry on port 2112/metrics.

Fig. 2. Live Grafana dashboard: over 200 trapped bots, 12 hours of wasted attacker compute, attack world map, and country statistics

1. Adding the Scrape Target in Prometheus

In your monitoring server’s prometheus.yml, append the new scrape job:

scrape_configs:
  - job_name: 'vps-endlessh'
    scrape_interval: 10s
    static_configs:
      - targets: ['your-vps-ip:2112'] # Public IP, domain, or Tailscale IP of your VPS

Reload Prometheus (docker restart prometheus or POST to /-/reload).

2. Importing the Official Grafana Dashboard

The official community dashboard on Grafana Labs is ID 15156 (Endlessh):

1. In Grafana, navigate to: Dashboards ➡️ New ➡️ Import.
2. Enter ID 15156 and click Load.
3. Select your Prometheus data source and click Import.

3. Two Essential Dashboard Fixes (Pro Tips)

After importing, make the dashboard editable by clicking Make editable in the top-right corner.

1. Eliminating the “API KEY REQUIRED” Watermark on the Map

By default, the Geomap panel requests Carto raster tiles, which now enforce an API key requirement.

• Click the three dots on the Locations panel ➡️ Edit.
• In the right-hand settings panel, expand Map layers ➡️ Basemap (Layer 0).
• Change the Type / Theme to Open Street Map (completely free, zero API keys required).

2. Fixing the Blank Map in Modern Grafana (Grafana 9 / 10 / 13)

The original dashboard routed map coordinates through 4 legacy groupBy transformations, which break in recent Grafana versions due to aggregation renaming. The cleanest fix is querying Prometheus directly:

• In the Locations panel, switch to the Query tab (bottom left).
• Change the data source from -- Dashboard -- to your Prometheus source.
• Enter the direct query:

  sum by (geohash, country, location) (endlessh_client_open_count)


• Toggle Instant to enabled and set Format: Table.
• Switch to the Transformations tab and delete the old legacy transformations (trash can icon 🗑️).
• In the right-hand sidebar under Map layers ➡️ Layer 1 (Markers), ensure Location mode is set to Geohash and Geohash field is set to geohash.
• Click Apply and save the dashboard.

Attackers’ geographic coordinates immediately populate across the globe with their respective cities and countries!

---

Conclusion: Active Defense and Internet Hygiene

Endlessh is more than just a satisfying counter-trolling mechanism — it represents active community defense:

1. Resource Preservation: Instead of forcing OpenSSH to fork processes and evaluate thousands of crypto handshakes, Endlessh ties up bots with a single thread.
2. Global Threat Mitigation: Botnets operate with finite concurrent socket pools. By locking up hundreds of bot threads on your VPS, you tangibly shield vulnerable unpatched servers worldwide from being scanned.

Deploy Endlessh on your VPS — watching your security logs has never been this rewarding! 🪤✨
